| BANDKNIFE CUTTING MACHINE- TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| MODEL | |||

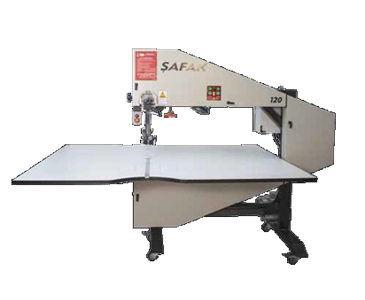

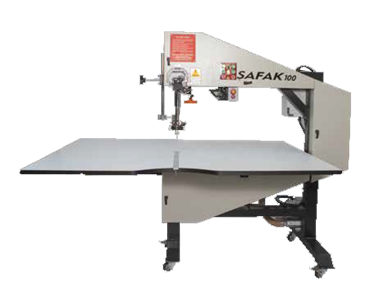

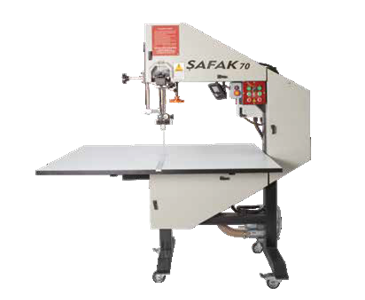

| BAND KNIFE MACHINES | 70 | 100 | 120 |
| CUTTING HEIGHT | 250mm | 250mm | 250mm |
| ARM EXTENTION | 700mm | 1000mm | 1200mm |
| TABLE SIZE | 1400 x 1000 mm | 1900 x 1380 mm | 2090 x 1380 mm |
| OVERALL DIMENSION | 1690x1000x1740mm | 2180x1380x1760mm | 2560x1380x1790mm |
| BANDKNIFE SIZE | 3500mm | 4120mm | 4920mm |
| BANDKNIFE SPEED | 90 mt/dak (m/min) | 90 mt/dak (m/min) | 90 mt/dak (m/min) |
| BANDKNIFE SPEED (OPTIONAL) | 0-120 mt/dak (m/min) | 0-120 mt/dak (m/min) | 0-120 mt/dak (m/min) |
| WHEELS QUANTY | 4 | 4 | 3 |
| VOLTAGE | 220/380V 50 Hz | 220/380V 50 Hz | 220/380V 50 Hz |
| MOTOR POWER | 1,1 kW | 1,1 kW | 1,1 kW |
